Simple Firewall example.
Configuring firewall rules

Glacier offers firewalling features using Access Control Lists (ACLs) which create a chain of criteria matching an incoming connection's properties. ACLs can be applied to interfaces as a whole and can be overridden on a per-incoming-port basis. This allows you to take full control over the matching algorithm, because you can specify criteria on two separately detailed levels. First a connection is matched against the interface ACL, then it is subjected to matching against the incoming port ACL.

The Glacier firewall engine distinguishes the following four types of matching criteria:

  • Remote host address, which determines if the address that initiates the connection matches a predefined address. An example matching value would be "".
  • Remote network mask, which check if the initiating address is originating from a predefined submask. Examples of a matching value are "192.168.0." and "10.".
  • Remote source port, this check ensures that the originating TCP source port is within a specified range, for instance "6000-8000".
  • Timespan, ensures that a connection is initiated only during certain hours. An example is "1800-2400" which would only match connections made during the afternoon.

Single ACL rules can be chained together using boolean operator logic to combine multiple criteria.

Let Glacier help you

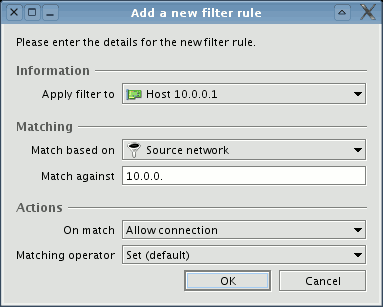

Adding a Firewall rule.
Graphically adding an ACL rule

Adding firewall rules is as easy as clicking your way through a simple dialog as in the screenshot on the right, there is no need for a text editor. As you can see, the dialog provides you with a relevant set of options, you needn't remember configuration details or available options, all settings are conveniently stored in drop-down combo boxes.

What's more: Glacier provides a helpful tooltip, a small passive popup message on the "Match against" field so you can easily find out what kind of value you need to provide for the selected ACL rule type.
